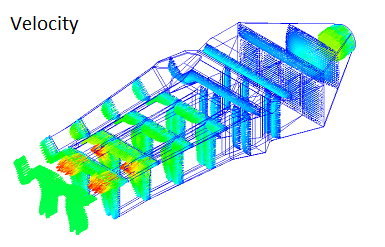

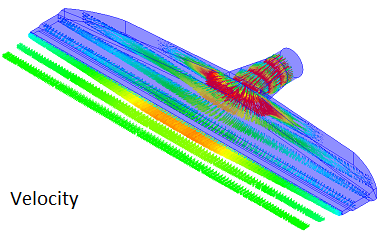

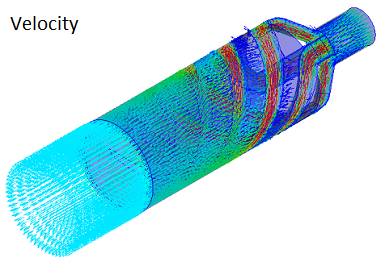

The monoextrusion die module of polyXtrue has been used to design and analyze many different types of dies including sheet and film dies, pipe and tube dies, as well as profile dies. Some of the die geometries designed by using polyXtrue are shown below.

monoextrusion
The polyXtrue software has been successfully used to design new monoextrusion dies as well as to optimize existing dies. Using the computer simulation of the flow in extrusion dies with polyXtrue, you can develop the die channel geometry such that a uniform velocity distribution is obtained at the exit (die balancing), and the pressure drop in the die is minimized. A uniform velocity distribution at the die exit is important for uniformity and stability of the extruded profile. Minimization of the pressure drop in the die is critical for achieving high throughput, and hence, for economics of extrusion process.

You will also predict the distortion in extrudate shape beyond the die exit. You can then modify the die channel geometry to match the predicted extrudate profile with the required shape of the final product.


Two different options are available for optimization of monoextrusion dies using polyXtrue.

1.  Purchase a license of monoextrusion die module of polyXtrue, and optimize your die design yourself. Plastic Flow will train you in the complete process of starting from die concept to achieving the final optimized die geometry.

2.  Download polyXtrue PPX software FREE of charge using the link given below, and then only pay a small fee for each simulation of the flow in your die.

https://plasticflow.com/PPXDownload.php

Here is how the PPX version of polyXtrue works:
  • Quickly import your die geometry, specify material, and define processing conditions. (No finite element meshing required)
  • Create a Job Submission file and submit it online using the link given below.
    www.plasticflow.com/ssl/Submission.php
  • Our experts at Plastic Flow will generate a finite element mesh, execute the analysis, and send the results back to you.
  • You will then plot all the results in the PPX version, just like in the full version of polyXtrue.

Technical Papers using this module of polyXtrue.
